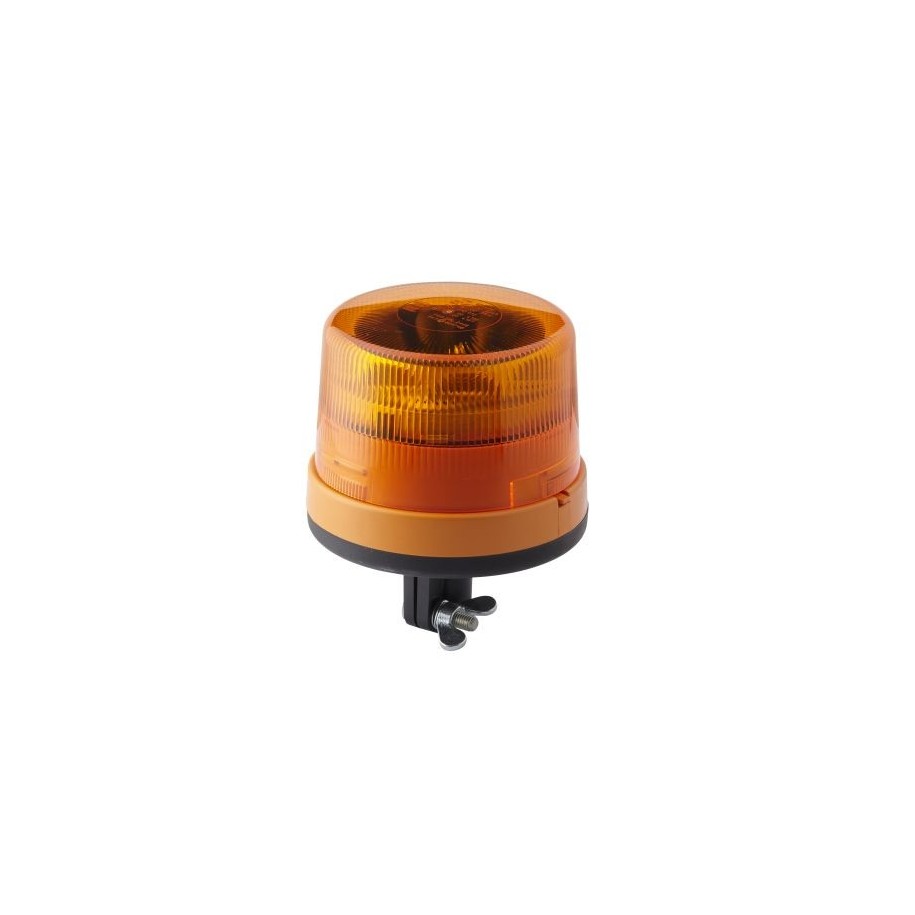

Rotating Beacon HELLA 2RL 011 484-011 OE Ref 11586540

Key Specification:
  • Diffusing Lens Material: PMMA (Polymethylmethacrylate)
  • EAN: 4082300330977
  • Fulfils ECE norm: R10
  • Fulfils ECE norm: R65
  • fulfils test standard: RCM
Sale
£ 194.00
£ 147.16 excl. VAT
Out of stock
SKU:HELLA 2RL 011 484-011
BrandHELLA
  • Free Shipping
    For orders over £75
  • Top-Notch Support
    Monday To Friday
  • 100% Safety
    Only secure payments
  • Hot Offers
    Discounts up to 70%
Diffusing Lens Material
PMMA (Polymethylmethacrylate)
EAN
4082300330977
Fulfils ECE norm
R10
Fulfils ECE norm
R65
fulfils test standard
RCM
Height [mm]
250
HELLA
Rotating Beacon
Housing Colour
Yellow
Housing material
Plastic
Lamp Type
LED
Length [cm]
18.5
Lens Colour
Yellow
Light colour
Yellow
Light Design
LED
Light Function
With rotating warning signal
Mounting Type
Flexible pipe sockets
Number of LEDs
8
OEM Reference number
1533685
Operating temperature from [C]
-40
Operating temperature to [C]
+60
Other Info
KL 7000 LED
Outer Diameter 1 [mm]
165
Packing Unit
1
Power Consumption [W]
10
Protection Type (IP Code)
IP5K4K
Protection Type (IP Code)
IPX9K
Quantity
1
Registration Type
SAE approved
Registration Type
ADR/GGVS approved
Rotating beacon RPM [1/min]
123
Supplementary Info
Electromagnetic Compatibility (EMC)
Supplementary Info
1609 - KL 7000 LED
Voltage [V]
12
Voltage [V]
24
Weight [kg]
1.1

Rotating Beacon OE Ref 11586540 – HELLA – OEM 1533685

This Rotating Beacon OE Ref 11586540 is supplied by HELLA as a replacement for OEM reference 1533685. It is intended for use in selected your vehicle vehicles and designed to meet original equipment fit and function requirements.

The part is identified by manufacturer reference 2RL 011 484-011 and EAN EAN: 4082300330977, allowing accurate identification and compatibility verification before installation. It is suitable for replacing worn, damaged, or non-functioning components where dependable operation is required.

This component is intended as a like-for-like replacement and should be installed in accordance with manufacturer guidelines. Installation requirements may vary depending on vehicle design and component location.

  • Electromagnetic Compatibility (EMC)1609 - KL 7000 LED

Vehicle Compatibility

Compatible with selected your vehicle models. Detailed compatibility information is available in the Compatibility section of this page.

If this part is not suitable for your vehicle, browse alternative options in our Lighting category.

Reference number(s) comparable with the original spare part number
OE reference number(s) comparable with the original spare part number
