Rotating Beacon HELLA 2RL 006 846-011 OE Ref 18-3450514
Key Specification:
- Diffusing Lens Material: PC (Polycarbonate)
- EAN: 4082300045505
- Fulfils ECE norm: R10
- Fulfils ECE norm: R65
- fulfils test standard: RCM
Sale
£ 149
£ 124.17 excl. VAT
In Stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
Diffusing Lens Material
PC (Polycarbonate)
EAN
4082300045505
Fulfils ECE norm
R10
Fulfils ECE norm
R65
fulfils test standard
RCM

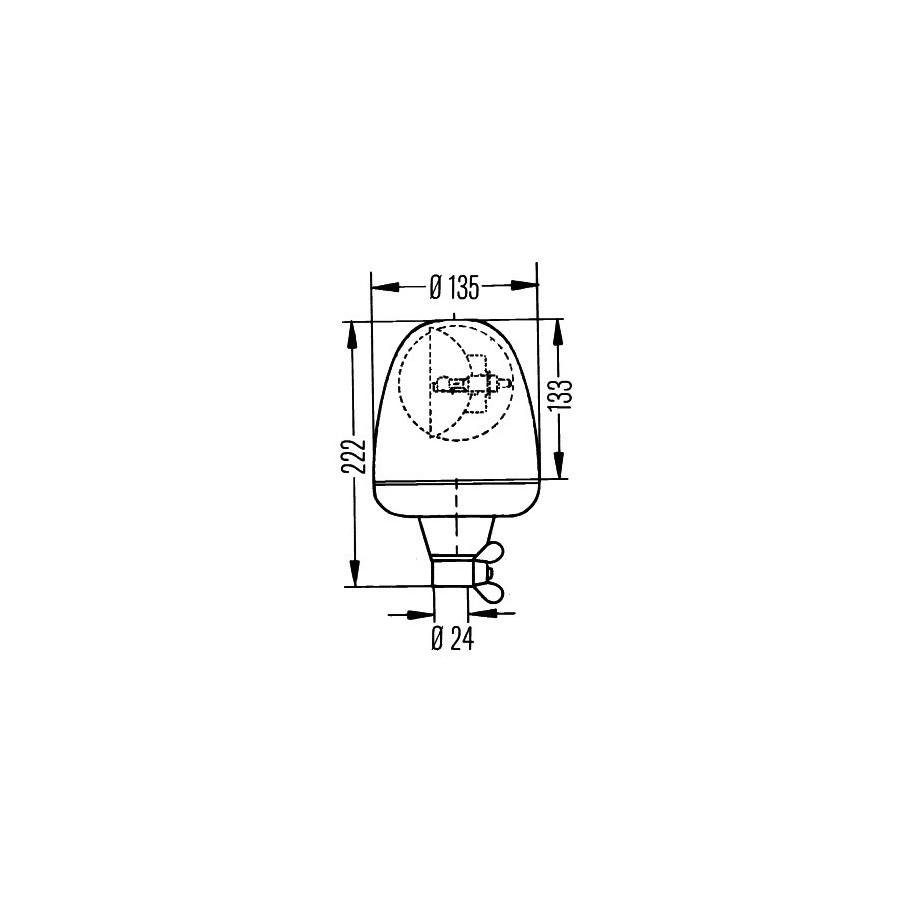

Height [mm]
222
HELLA
Rotating Beacon
Housing Colour
Black
Housing material
EPDM (ethylene propylene diene Monomer (M-class) rubber)
Lamp Type
H1
Length [cm]
19
Light colour
Yellow
Light Design
Halogen
Light Function
With rotating warning signal
Mounting Type
Pipe-neck
OEM Reference number
02301414
Operating temperature from [C]
-40
Operating temperature to [C]
+60
Other Info
Rotaflex
Outer Diameter 1 [mm]
135
Packing Unit
1
Power Consumption [W]
70
Protection Type (IP Code)
IPX9K
Protection Type (IP Code)
IP5K4K
Quantity
1
Rotating beacon RPM [1/min]
174
Supplementary Info
with bulb
Supplementary Info
Electromagnetic Compatibility (EMC)
Supplementary Info
1731 - KL Rotaflex FL - ROTAFLEX R
Voltage [V]
24
Weight [kg]
0.84
Rotating Beacon OE Ref 18 3450514
When a Rotating Beacon OE Ref 18 3450514 wears out or fails, it needs replacing with something built to the same standard as the original. This HELLA part does exactly that — a direct match for OEM 02301414, made to restore normal function rather than just "fit."
HELLA reference 2RL 006 846-011, EAN: 4082300045505 — keep this handy if you're comparing against other listings or checking with a specialist before you buy.
- with bulb
- Electromagnetic Compatibility (EMC)1731 - KL Rotaflex FL - ROTAFLEX R
Compatibility Check
This part fits selected various vehicles. Because fitment can vary by model year and trim, we'd always recommend confirming against OEM 02301414 or using the vehicle lookup tool first.
Wrong fit for your car? Everything else in Lighting is sorted by vehicle compatibility too.
Reference number(s) comparable with the original spare part number
OE reference number(s) comparable with the original spare part number
