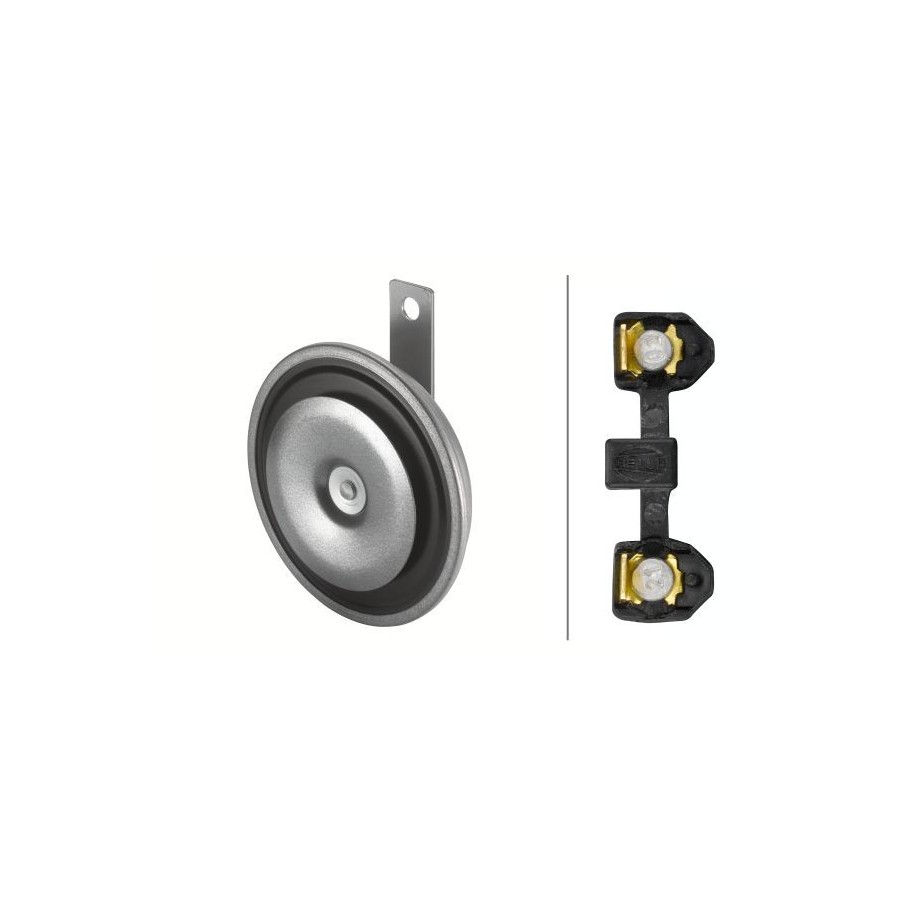

Signal Horn HELLA 3BA 002 768-131 OE Ref B94.01107
Key Specification:

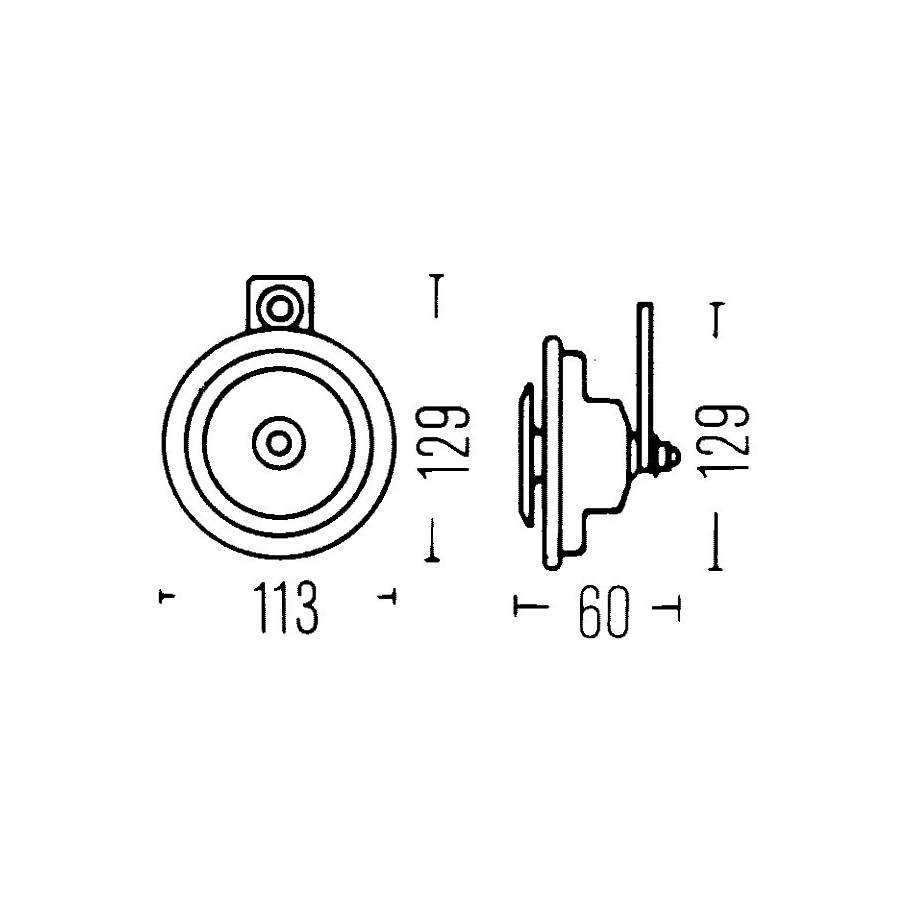

- Depth [mm]: 60
- Diameter [mm]: 112
- EAN: 4082300069549
- Frequency Range [Hz]: 335
- Fulfils ECE norm: R28
Sale
£ 34
£ 28.33 excl. VAT
In Stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
Depth [mm]
60
Diameter [mm]
112
EAN
4082300069549
Frequency Range [Hz]
335
Fulfils ECE norm
R28
Housing Colour
Grey
Length [cm]
11.5
Mounting Type
Flat Plug-in Connector
OEM Reference number
002768131
Overall Height [mm]
129
Packing Unit
1
Power Consumption [W]
72
Protection Type (IP Code)
X9K
Protection Type (IP Code)
X7
Protection Type (IP Code)
X4K
Registration Type
ECE approved
Sound Level [dB(A)]
116
Supplementary Info
with moisture protection
Supplementary Info
with E quality seal
Supplementary Info
B 36
Temperature range from [C]
-40
Temperature range to [C]
60
Voltage [V]
12
Weight [kg]
0.36
Width [mm]
113
Signal Horn OE Ref B94.01107 by HELLA
Here's what you need to know about this part before ordering:
- Manufactured by HELLA, matched to OEM reference 002768131
- Identified as HELLA part 3BA 002 768-131, EAN: 4082300069549
- Fits selected various models — confirm before ordering
- with moisture protectionwith E quality sealB 36
It's designed as a straight swap for the original part, built to restore correct operation rather than serve as a rough stand-in.
Not sure it's right for your vehicle? Use the registration lookup tool, or check the OEM reference above against your old part. Alternatives are available in Electrics.
Reference number(s) comparable with the original spare part number
OE reference number(s) comparable with the original spare part number
