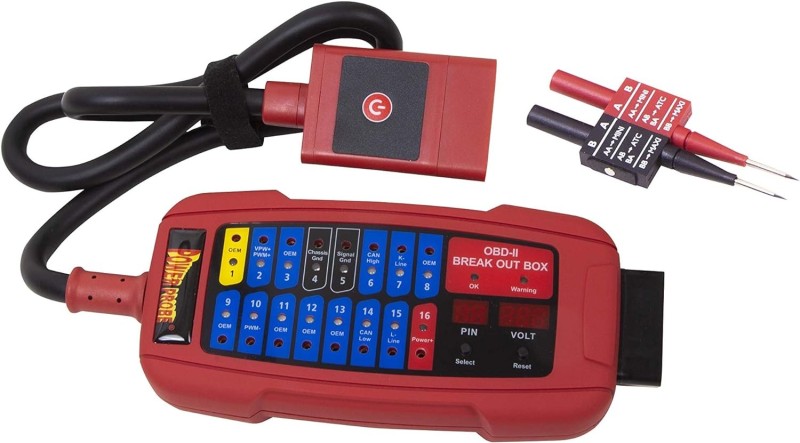

PPECB: The ultimate OBD-II breakout box for diagnosing DLC faults, monitoring voltages, and protecting diagnostic tools with precision.
Key Features:
- Power Probe OBD II Breakout Testing Box
- Tests DLC (OBD port) for any abnormalities
- such as shorting or reverse polarity at the pins before connecting other diagnostic equipment.
- quickly accss all 16 pins connections during repair and diagnosois of the vehicle
- Voltage Monitoring Range: 7.0V to 30.0V DC input
- Maximum Load: Up to 3.0A output
- Overload Protection: PTC self-healing fuse
- LED Displays: 3-digit resolution of 0.1V
- Banana Sockets: 16 outputs with 1.0mm diameter and LED indicators
- Protocols Detected: PWM (J1850)
- VPW (J1850)
- ISO 9141-2
- DIS/ISO 14230-4
- CAN bus (J-2284)
- Temperature Range: Suitable for automotive environments
- Humidity Tolerance: Less than 70%
- Cable Length: 30 inches (0.8 meters)
- Polarity Protection: Detects reverse polarity with red LED for pins 4 and 5
- Voltage Alerts: Slow beeps for low voltage (<11.8V for 12V systems)
- fast beeps for high voltage (>15.5V for 12V systems)
- Diagnostic Features: Monitors individual pins for voltage presence
- detects communication protocol signals
- DLC Connector Flashlight: Built-in light for easier connection
- Battery Type for Flashlight: CR1220 coin battery.
