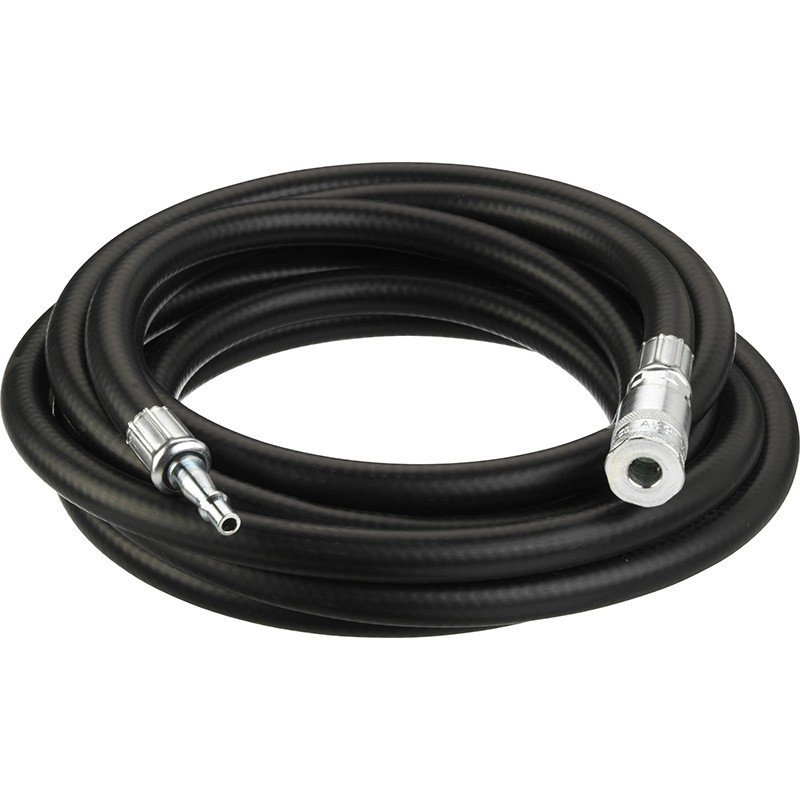

Hose Assembly ID Vertex Fittings 20mm (Air Fittings)
Key Specification:
- Diameter: 10mm
- Length: 10m
- MFG Code: PCL
- PURPOSE GROUP: Air Fittings
- Supplementary Info: Tool Consumables
Sale
£ 76
£ 63.33 excl. VAT
In Stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
Diameter
10mm
Length
10m
MFG Code
PCL
PURPOSE GROUP
Air Fittings
Supplementary Info
Tool Consumables
Type
Hose
Excellent abrasion resistance
- Excellent abrasion resistance
- Good flexibility and kink resistant
- Resistance to oil and fuels
- Silicone free
- Conforms to: ISO 5774:2008 (BS 6066:1981)
- Exceeds: BS EN ISO 2398:1997 (BS 5118:1980)
- Working Pressure (1): 300 psi / 21 bar
- Burst Pressure: 63 bar (3:1 safety factor)
- Temperature Range: -10°C to 60°C
- Conforms to ISO 5774:2008 (BS 6066:1981)
- ExceedsBS EN ISO 2398:1997 (BS 5118:1980)
- Hose Fittings Vertex Coupling & Standard Adaptor
- Working Pressure (Please note - an increase in temperature above 20°C will affect the working pressure quoted above.) 300 psi / 21 bar
- Burst Pressure 63 bar (3:1 safety factor)
- Temperature Range -10°C to 60°C
- Hose Length 10m
- Hose Inside Diameter 10mm / 3/8 in
- Hose Outside Diameter 17mm
