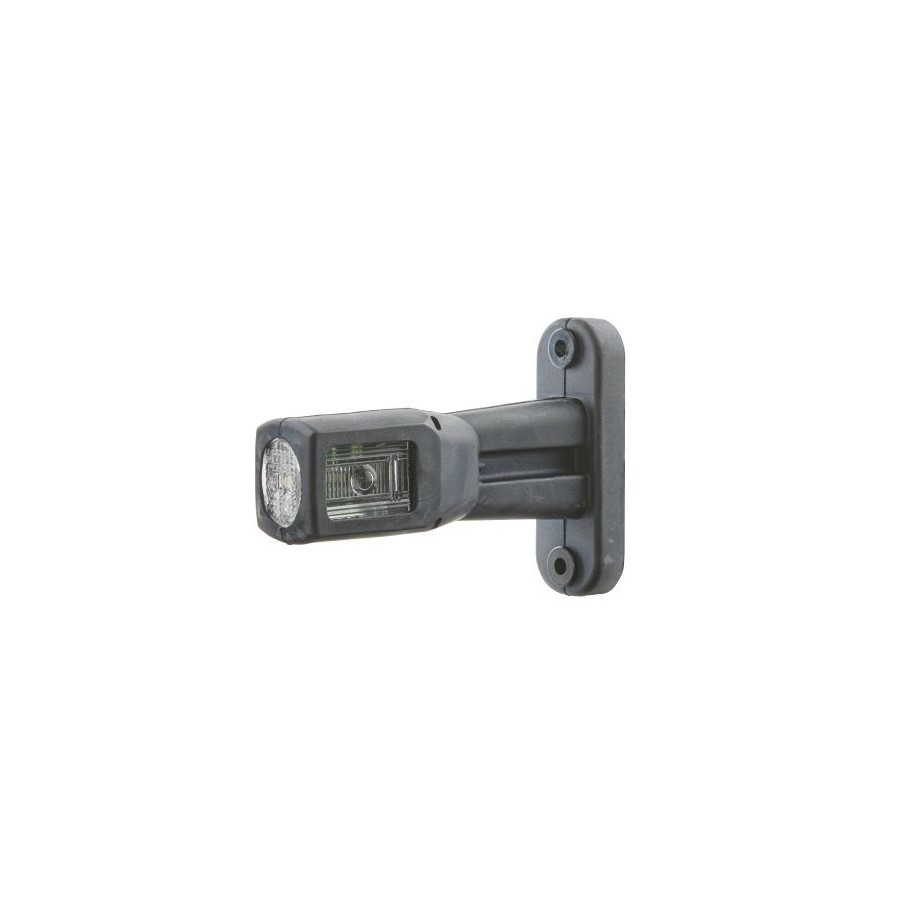

Clearance Light HELLA 2XS 011 768-001 OE Ref 2 197 719
Key Specification:
- Cable Length [mm]: 500
- EAN: 4082300405576
- Fitting Position: Left
- Fitting Position: Right
- Fitting Position: Lateral Mounting
Sale
£ 57
£ 47.5 excl. VAT
In Stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
Cable Length [mm]
500
EAN
4082300405576
Fitting Position
Left
Fitting Position
Right
Fitting Position
Lateral Mounting
HELLA
Clearance Light
Lamp Type
LED

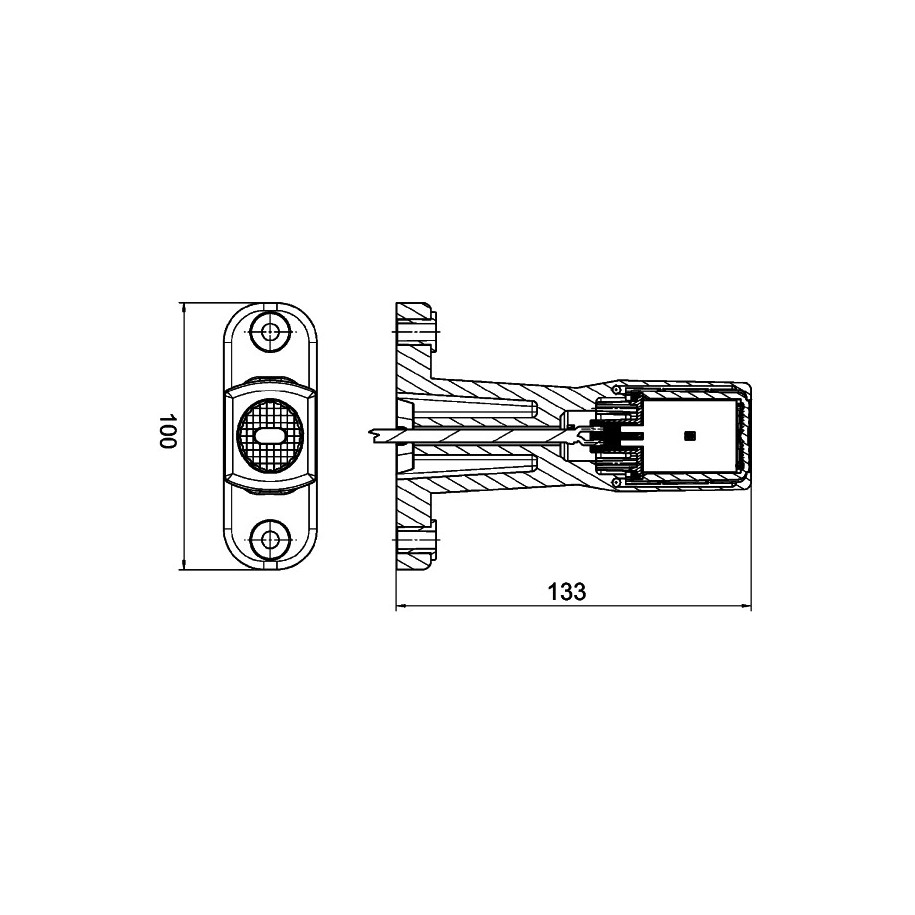

Length [cm]
14.3
Light Design
LED
Light Function
with position light (LED)
Light Function
with side marker light (LED)
Light Function
with taillight (LED)
Number of LEDs
4
Number of light functions
3
Number of pins
2
OEM Reference number
1527181
Packing Unit
1
Plug Type ID
Quick Link
Protection Type (IP Code)
6K9K
Registration Type
ECE approved
Registration Type
ADR/GGVS approved
Supplementary Info
with pipe
Voltage [V]
12
Voltage [V]
24
Weight [kg]
0.2
HELLA Clearance Light OE Ref 2 197 719
HELLA manufactures this Clearance Light OE Ref 2 197 719 to original equipment tolerances, which is why it's specified as a direct replacement for OEM 1527181 rather than a rough equivalent.
You'll find it referenced as 2XS 011 768-001, EAN: 4082300405576 — worth noting down if you're getting a second opinion from a mechanic before fitting.
- Fitting position of this Marker & Position Lights (Universal) is: Lateral Mounting
- with pipe
Will It Fit My Car?
It's built for selected various vehicles. The safest way to confirm is matching OEM reference 1527181 against your existing part, or using our vehicle lookup tool with your registration.
Looking for something else? Browse the rest of Lighting.
Reference number(s) comparable with the original spare part number
OE reference number(s) comparable with the original spare part number
