Circuit Tracer
Sale
£ 270.00
£ 201.20 excl. VAT
In Stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
MFG Code
POW

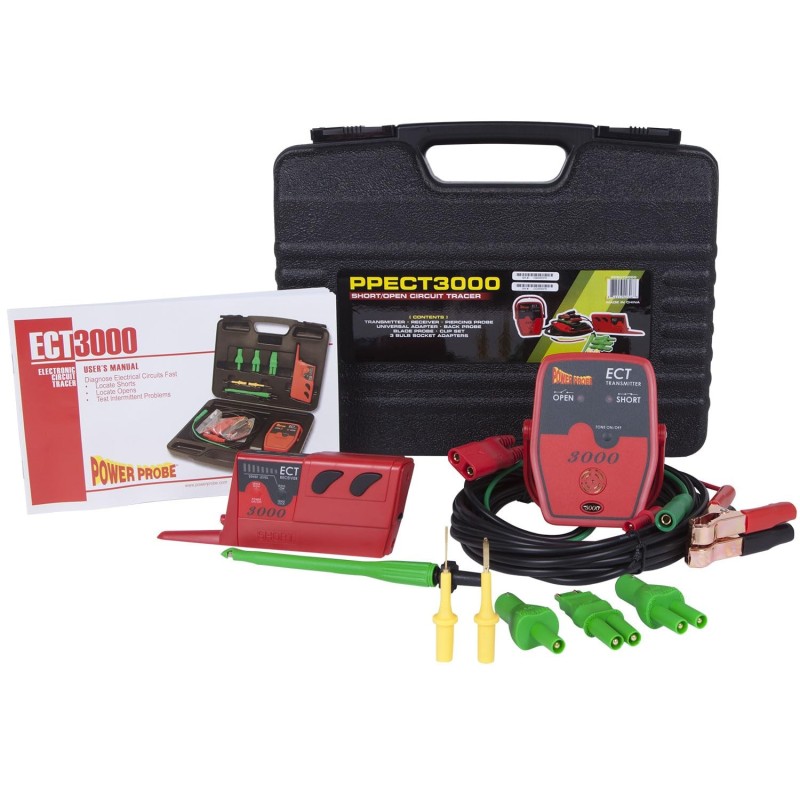

ECT3000: A reliable circuit tracker for automotive professionals, simplifying the diagnosis of open and short circuits with precision.
Key Features:
- Signal Locking will show the correct direction to a short to ground
- Signal distance bar indicates distance height from short to ground or open circuits
- LED light on receiver illuminates the work space area
- Longer 10-minute Auto shut off time
- Operating Voltage (Transmitter): 6V-48V DC
- Current Consumption (Transmitter): <200mA
- Operating Voltage (Receiver): 2 AAA batteries
- Signal Frequency: 4kHz polarized signal
- Circuit Testing Modes: Open circuit tracking
- short circuit tracking
- ground circuit tracking
- Operating Temperature: Up to 50°C
- Storage Temperature: Up to 70°C
- Maximum Humidity: 80% non-condensing
- Altitude Limit: <2000m
- Signal Detection: Indicates short and open circuits using visual and audio cues
- Sensitivity Adjustment: Adjustable for varying signal strengths
- Auto Shutoff: Receiver turns off after 10 minutes of inactivity
- Accessories Compatibility: Standard 4mm banana jack connectors for custom adapters
- Cable Length: 6m transmitter power cable for extended reach.
