Brake Drum MINTEX MBD178 OE Ref 432062F010

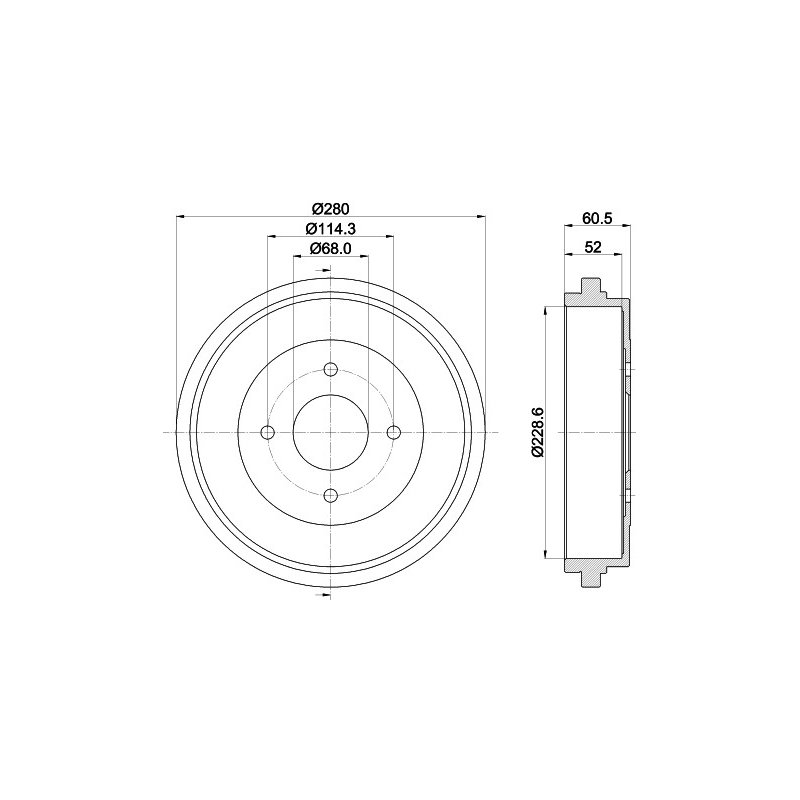

Key Specification:
- Bolt Hole Circle [mm]: 114.3
- Centering Diameter [mm]: 68
- EAN: 5028740749725
- Hole Arrangement/Number: 04/04
- Inner brake drum diameter [mm]: 229
Sale
£ 156
£ 130 excl. VAT
Out of stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
Bolt Hole Circle [mm]
114.3
Centering Diameter [mm]
68
EAN
5028740749725
Hole Arrangement/Number
04/04
Inner brake drum diameter [mm]
229
Inner Brake Drum Height [mm]
52
max. brake drum reboring dimension [mm]
230
OEM Reference number
432062F010
Outer brake drum diameter [mm]
280
Supplementary Info
without wheel bearing
Supplementary Info
without wheel hub
Supplementary Info
without wheel studs
Supplementary Info
Brake drum
Total brake drum height [mm]
61
Weight [kg]
6.2
OEM 432062F010 Replacement — Brake Drum MINTEX OE Ref
If your vehicle's original part carries reference 432062F010, this MINTEX Brake Drum MINTEX OE Ref is built as its direct replacement — not a similar part, the correct one.
MINTEX reference MBD178, EAN: 5028740749725.
- without wheel bearingwithout wheel hubwithout wheel studsBrake drum
Suitable for selected NISSAN models. As always, we'd recommend confirming against your vehicle registration or the OEM number before ordering, since running changes between model years can affect fitment.
Not the right OEM number? Braking System has the full range.
Reference number(s) comparable with the original spare part number
OE reference number(s) comparable with the original spare part number
