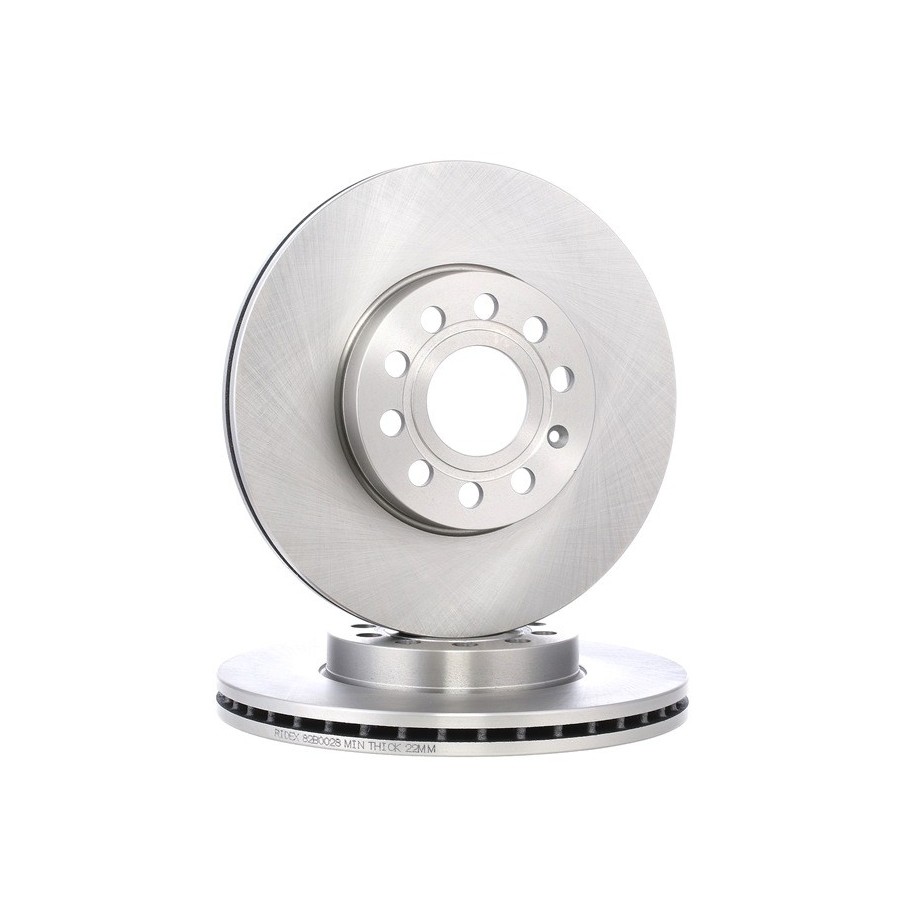

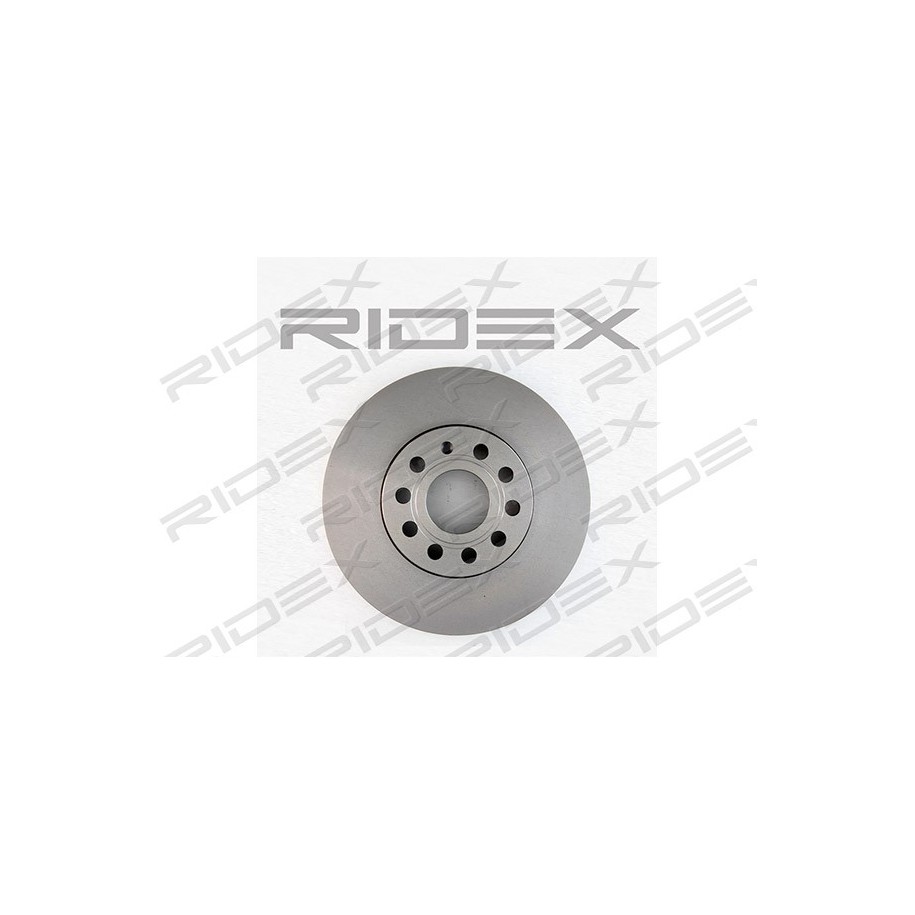

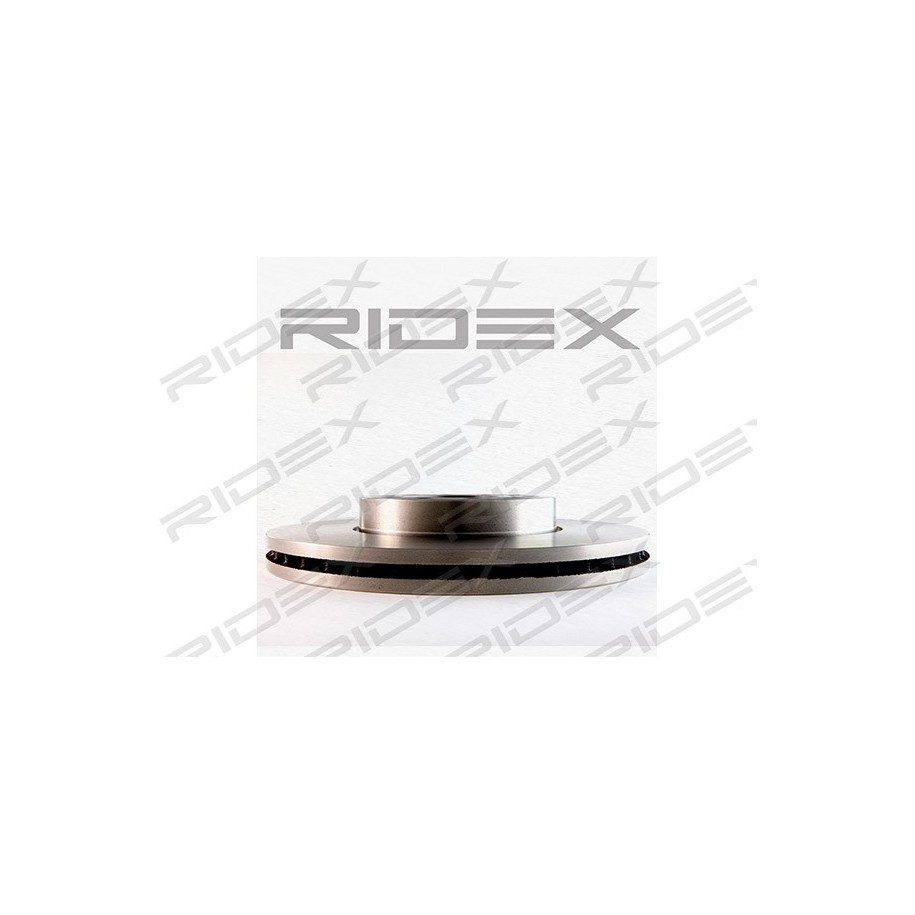

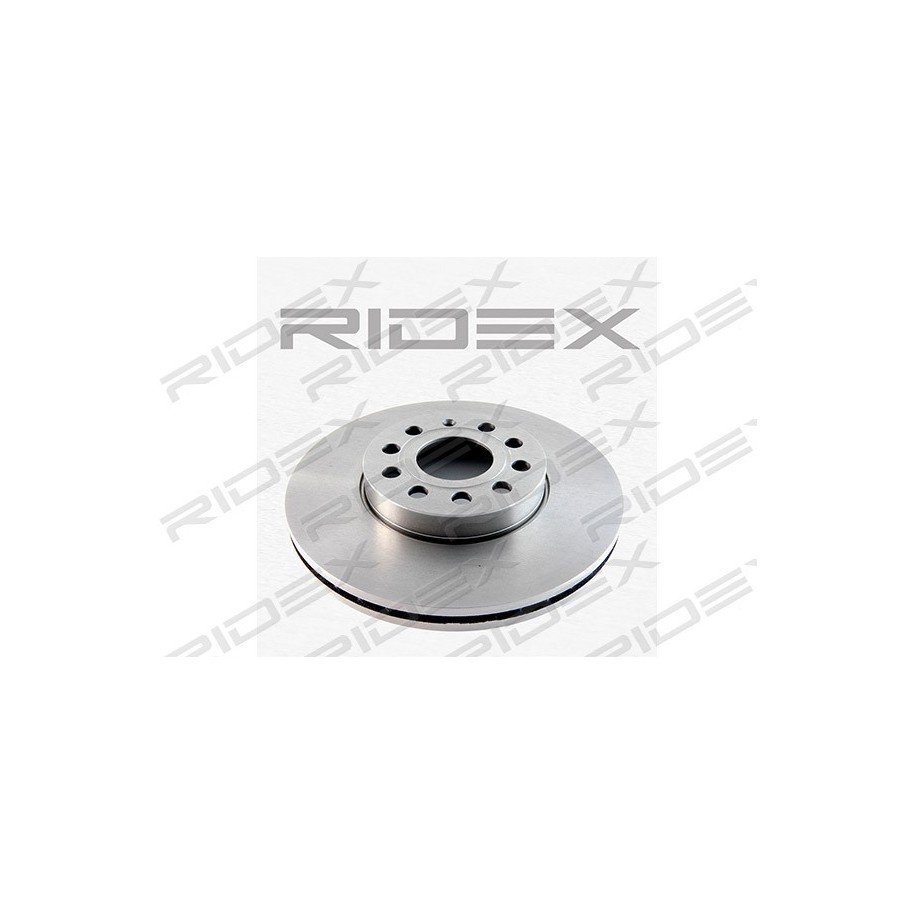

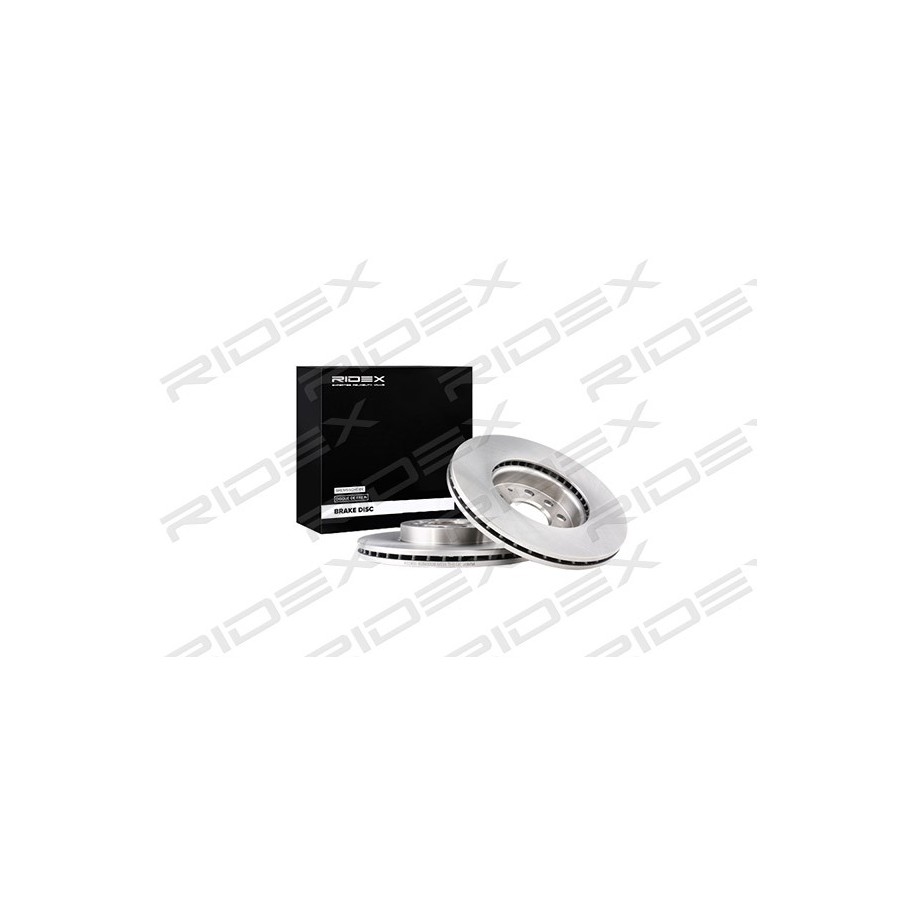

Brake Disc RIDEX 82B0028 OE Ref 5C0615301D
Key Specification:
- Bolt Hole Circle 1 [mm]: 112
- Bolt Hole Circle [mm]: 112.0
- Brake Disc Thickness [mm]: 25.0
- Brake Disc Thickness [mm]: 25
- Brake Disc Type: Vented
Sale
£ 77
£ 64.17 excl. VAT
In Stock
- Free ShippingFor orders over £75
- Top-Notch SupportMonday To Friday
- 100% SafetyOnly secure payments
- Hot OffersDiscounts up to 70%
Bolt Hole Circle 1 [mm]
112
Bolt Hole Circle [mm]
112.0
Brake Disc Thickness [mm]
25.0
Brake Disc Thickness [mm]
25
Brake Disc Type
Vented
Brake Disc Type
internally vented
Centering Diameter [mm]
65.0
Diameter [mm]
288
EAN
4059191312856
Fitting Position
Front Axle
Height [mm]
49.9
Hole Arrangement/Number
5/9
Hub Bore [mm]
65
Inner Diameter [mm]
144
Material
Grey Cast Iron
Minimum thickness [mm]
22
Minimum thickness [mm]
22.0
OEM Reference number
5C0615301D
Outer Diameter [mm]
288
Supplementary Info
without screw
Surface
Uncoated
Weight [kg]
7.515
Wheel Bolt Bore [mm]
15.3
RIDEX Brake Disc OE Ref
RIDEX manufactures this Brake Disc OE Ref to original equipment tolerances, which is why it's specified as a direct replacement for OEM 5C0615301D rather than a rough equivalent.
You'll find it referenced as 82B0028, EAN: 4059191312856 — worth noting down if you're getting a second opinion from a mechanic before fitting.
- Fitting position of this Brake Disc is: Front Axle
- without screw
Will It Fit My Car?
It's built for selected various vehicles. The safest way to confirm is matching OEM reference 5C0615301D against your existing part, or using our vehicle lookup tool with your registration.
Looking for something else? Browse the rest of Braking System.
